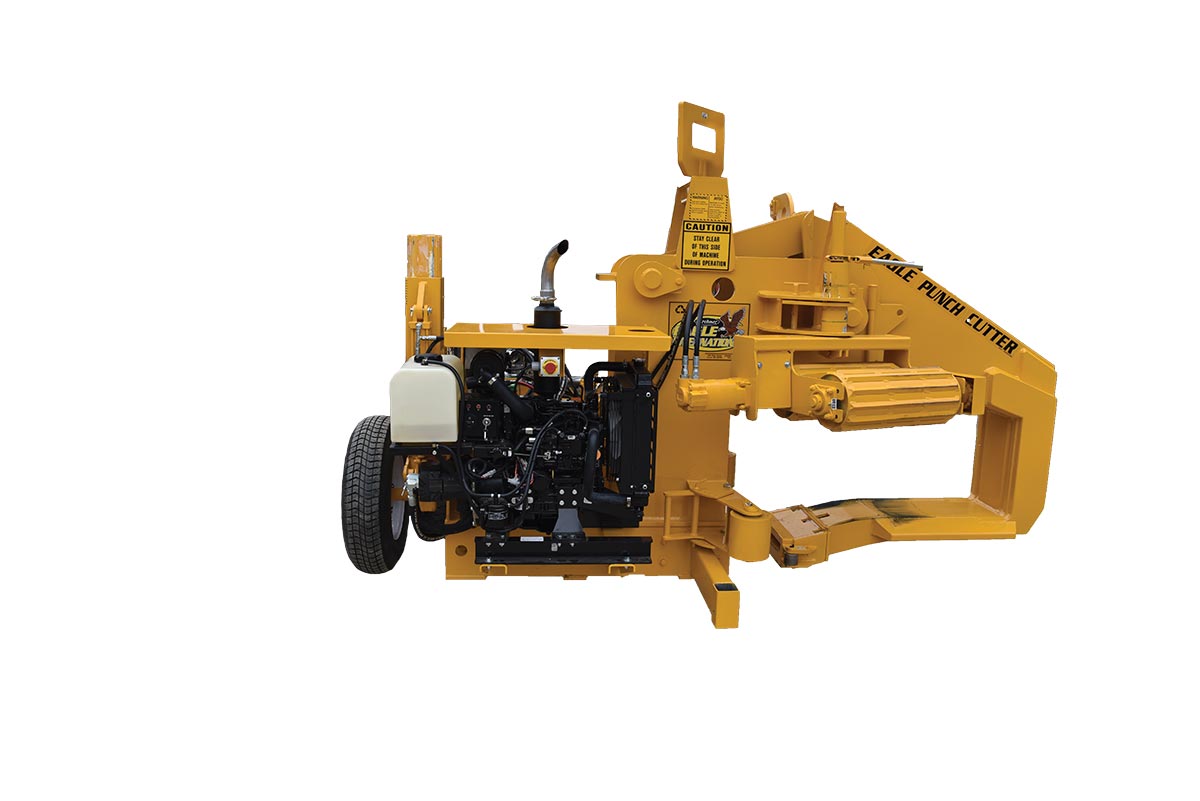

The Punch Cutter is loaded onto a tire and rotates
around the outside of the tire.
A blade is used to punch the tire while a programmable logic controller (PLC) controls the
rotation of the machine around the tire and the punching process. This allows the operator to
set the machine, press start, and let it run.

Specifications
Weight: 4,500 lbs (2,041 kg)
Height: 82“ (208 cm)
Width: 63” (160 cm)
Length: 126” (320 cm)
Axles: Single
Blade Size: 10”
Min. Tire Capacity: Rim Size 39”/Tread Width 37”
Max. Tire Capacity: 70/70-57
Cycle Time up to 8 Minutes/Tire

It can handle a range of tire sizes, from a rim size of 39 inches and a tread width of 37 inches up to, and including, rim size of 63 inches and tread width of 70 inches.

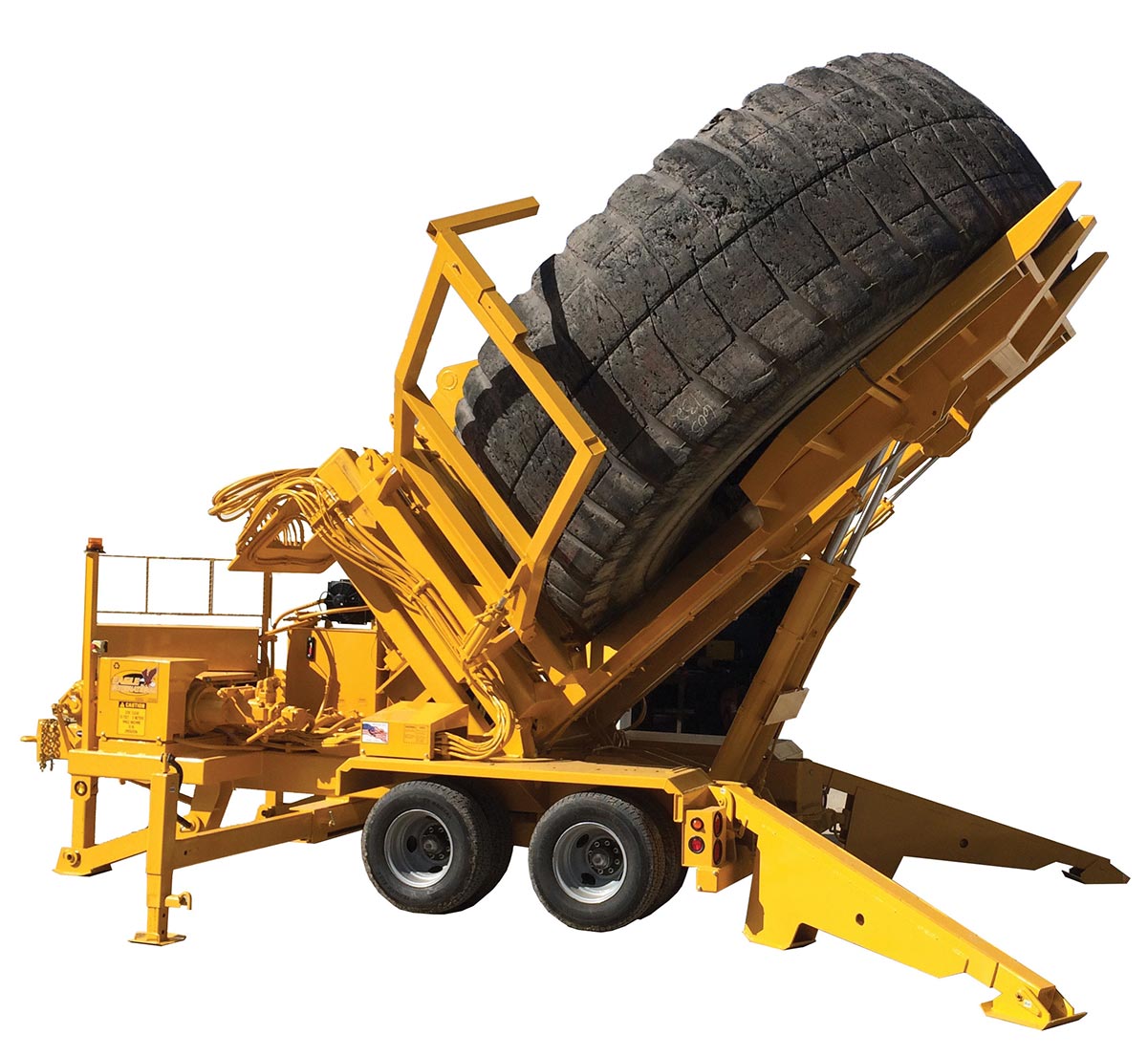

A blade is used to punch the tire while a programmable logic controller (PLC) controls the rotation of the tire and the punching process, allowing the operator to set the machine, press the start button, and let it run.
Specifications
Weight 26,500 lbs (2,041 kg)
Travel Height 162” (411.5 cm)
Travel Width 96” (243.8 cm)
Travel Length w/Tow Ring 273” (693 cm)
Hitch 3” Tow Ring or 2” Kingpin
Four hydraulic-powered bed rollers
Hydraulically adjustable tire cage
PLC automatically turns the tire and punches
Fuel Tank Capacity 42 Gallon (159 Liters)
Oil Tank Capacity 44 Gallons (167 Liters)
Blade Size 10”
Min. Tire Capacity Rim size 39”
Max. Tire Capacity Up to/including 70/70-57
Average Hourly Production 5-6 OTR Tires/Hour

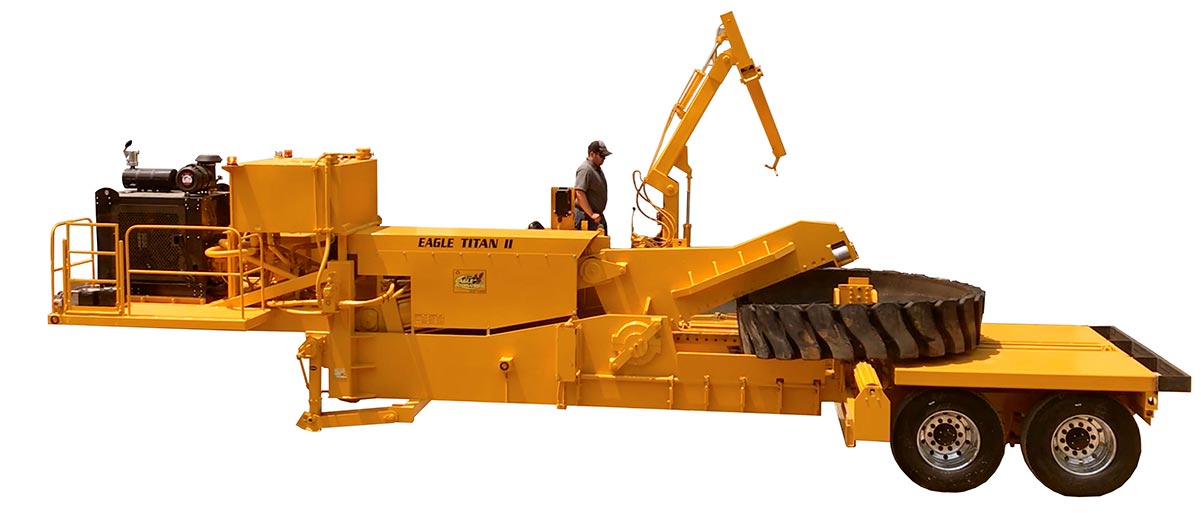

Tires with tread wider than 44 inches can be downsized with the Titan II tire cutter after being bagel cut with the Punch Cutter or Punch Cutter II. Five hydraulically powered rollers rotate the tires into position, move the tire from side to side, front to back, and rotate in a circular motion. A hydraulically powered probe helps position and hold the tire during the cutting cycle. Cut size is determined by the operator.

Specifications
Weight 49,800 lbs (22,589 kg)
Weight on Rear Axles 27,700 lbs (12,565kg)
Height 118.5” (301 cm)
Width 96” (244 cm)
Length 433” (1100 cm)
Suspension Leaf Spring
Tires 315/80 R 22.5
Fuel Tank Capacity 42 Gallon (159 Liters)
Blade Size 1”x4”x76”
Max. Tire Capacity Up to/including Bagel Cut 59/80R63 or 40.00/57 whole tire
Average Hourly Production 3-5 Tires/Hour

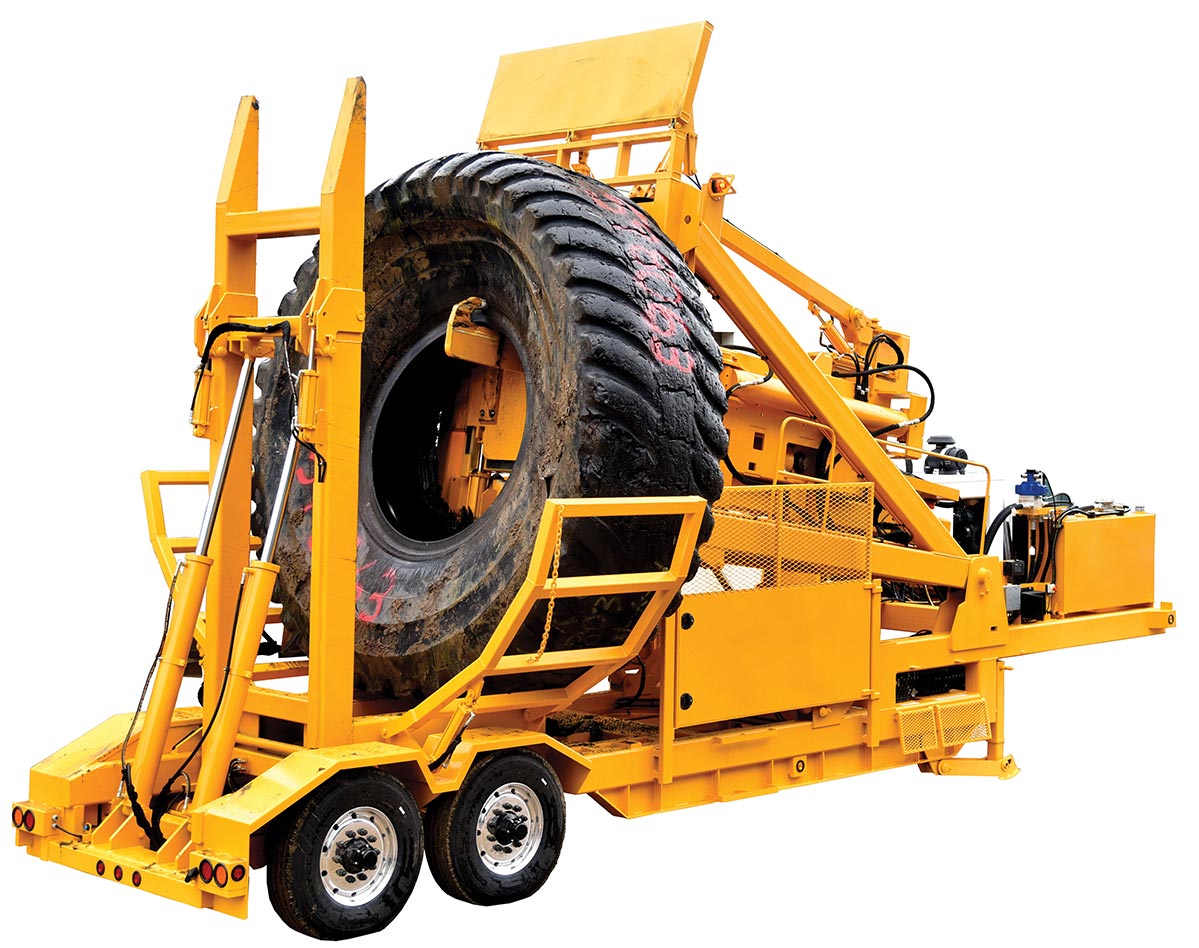

Hydraulically adjustable die plates ensure the proper size of opening for the various different sizes of bead bundles in different sizes of tires. A hydraulic shear is included to trim off any excess rubber from the bead that may have been left behind from a weak sidewall. A hydraulic crane is provided to remove the bead wires from the hook and distribute them away from the machine. A wireless remote is used to provide superior operator safety and ensures the operator is able to maneuverer around the machine as necessary.

Specifications
Weight 46,440 lbs (21,056kg)
Travel Height 159” (404 cm)
Work Height 249“ (633 cm)
Travel Width 102” (259 cm
Travel Length 447” (1,135 cm)
Shear to cut off excess rubber
Radio remote control
Crane to lift off beads
Hydraulically adjustable tire cage
Axles Tandem Air Brake
Suspension Leaf Spring
Tires 315/80 R22.5
Fuel Tank Capacity 42 Gallon (159 Liters)
Oil Tank Capacity 107 Gallons (405 Liters)
Min. Tire Capacity 20.5R25 Max. Tire Capacity59/80R63
Average Cycle Time 8-10 Minutes
Average Hourly Production 6-8 Tires/Hour

The volumetric reduction makes transport more economical and facilitates the subsequent processing phases of recycling plants.

Specifications
Processed tyres 18-51"
Power supply 460 V- 60-Hz
Power 53 kW
Maximum production 20 tires/hour
Weight 15 tons

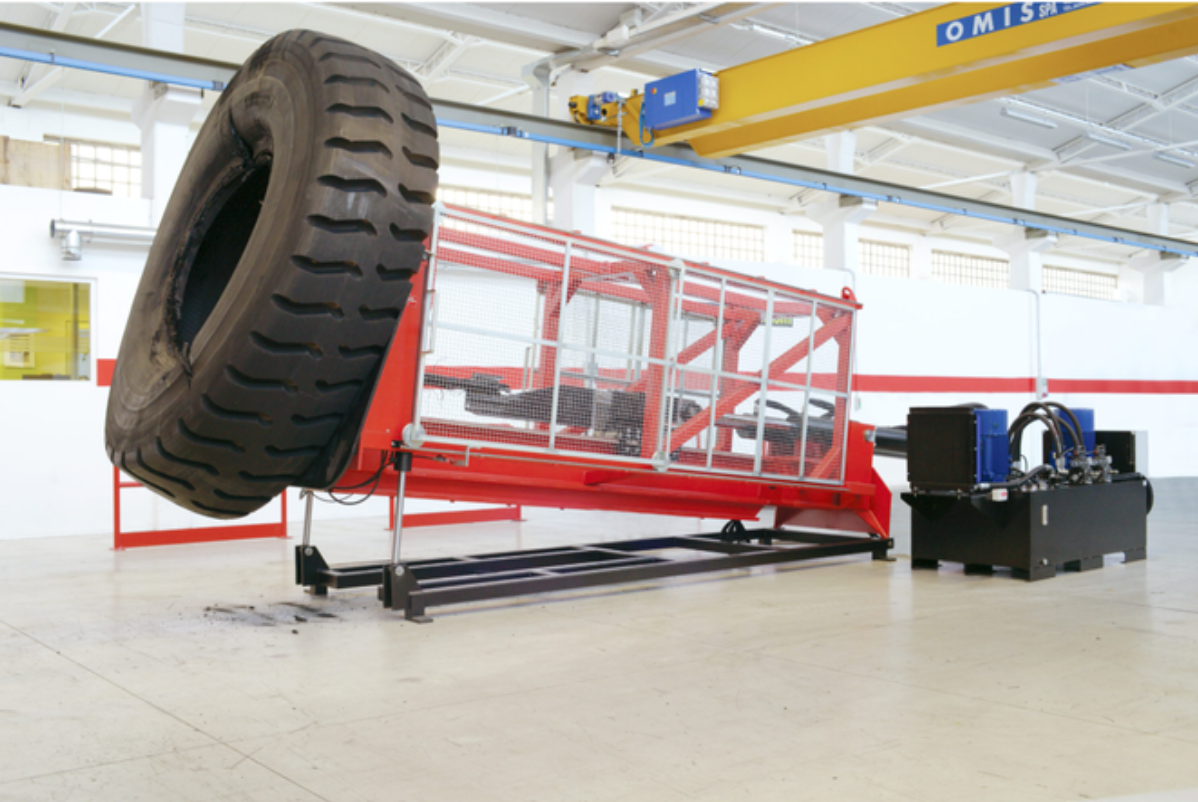

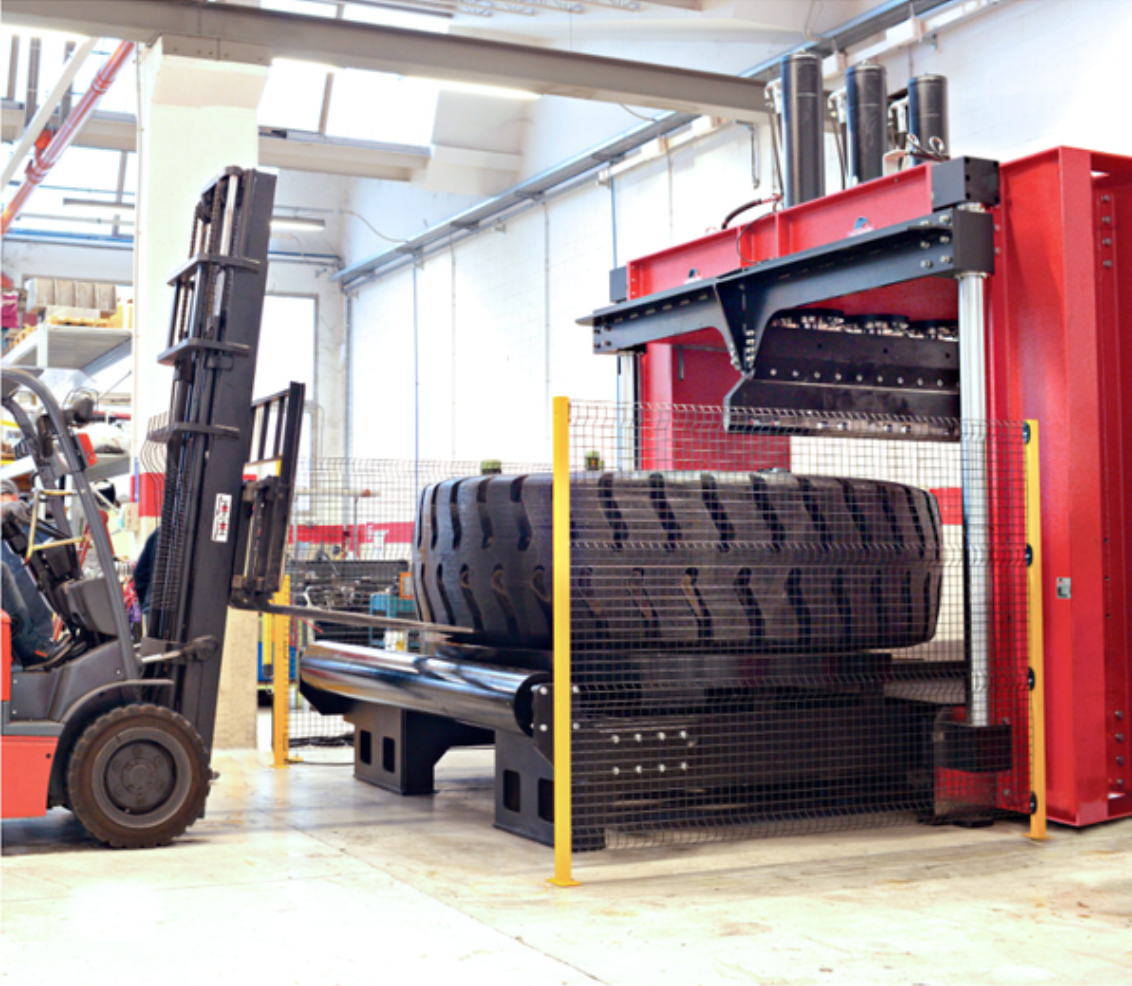

The bead-breaking facilitates the subsequent recycling phases, increases the li
fe of the shredders' blades and allows to obtain a cleaner rubber granule.
It allows to increase the productivity of the shredding line downstream by reducing the machine downtime and increasing the useful life of the blades typically be 60%. Its integrated safety system allows to manage large tyres with complete peace of mind.

Specifications:
Processed tyres 18-51"
Power 44kW
Maximum traction 90 tons
Weight 8.2 tons

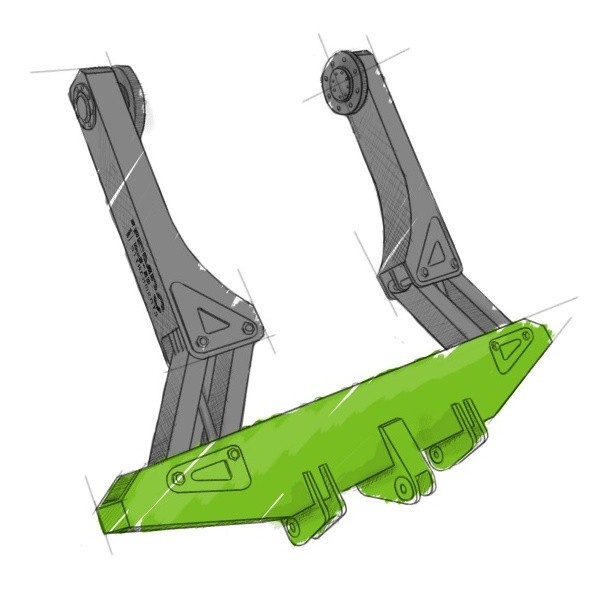

• Custom-built for mining and earthmoving industries.
• Versatile functions: lifting, rotating, tipping, and side-shifting.
• Compatible with most forklifts and wheel loaders.
• Durable construction using quality steel.
• Safe design with superior visibility and internally located hydraulic hoses.
• Wide range of applications including mining and recycling.

Specifications:
600 mm center to center distance
Dual drive, 150Hp powered by two 75 Hp Siemens electric motors.
1800mm X 15
00mm Opening
Boneng Gearboxes
SKF Bearings
Shaft rotation speed: 6.49 RPM
Blade thickness: 50mm
Hydraulic Ram feed
Hopper
Stand
Total weight: 27 000 Kg

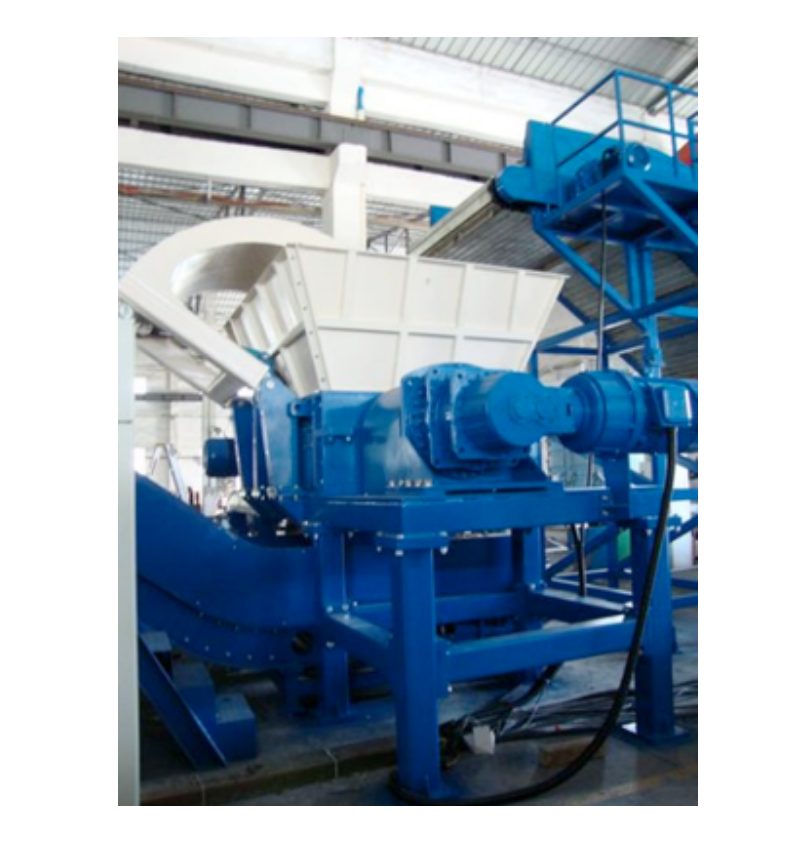

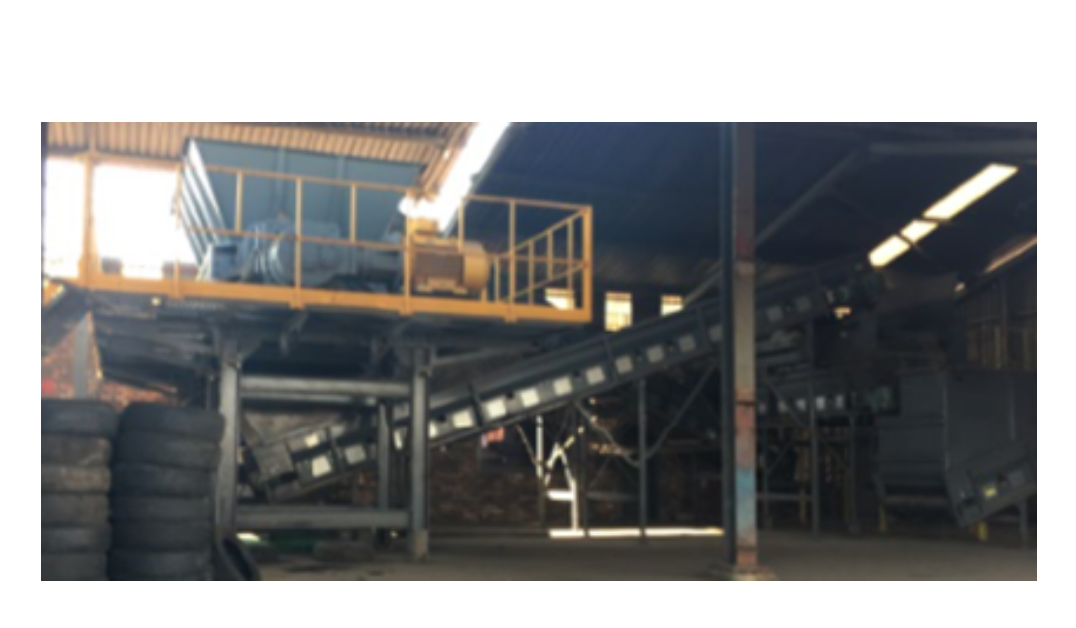

Tyres are loaded onto a 2000mm wide infeed conveyor, feeding the Hopper of an Eidal 100-72 Shear Shredder with cutters at 100mm. Tyres are volume reduced to 100mm wide strips to allow volume reduction for maximum payload on transport. A 2000mm wide conveyor conveys chip to stockpile.
